Product Overview



UHMWPE raw material is a linear polyethylene with a molecular weight exceeding 4.5 x 10^6 g/mol, supplied in white free-flowing powder form. It bridges the gap between engineering plastics and high-performance thermoplastics by combining an ultra-high molecular weight with a low coefficient of friction.
Unlike standard HDPE (High-Density Polyethylene), this ultra-high molecular weight delivers exceptional impact strength, low wear rates, and chemical resistance. Processed primarily via ram extrusion, compression molding, and gel spinning, it serves as the base polymer for demanding industrial wear components.

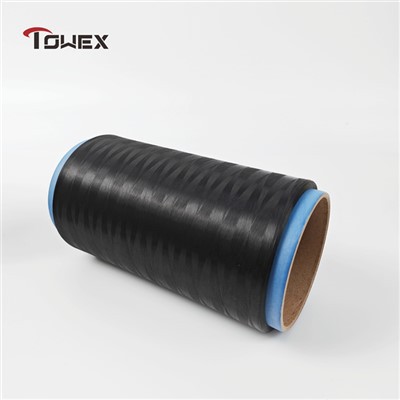

  • UHMWPE Yarn Industry Solutions
    As a premier source factory of UHMWPE, TOWEX provides tailored UHMWPE yarn solutions across five core industrial sectors. Each industry requires a specific balance of denier, tenacity, and processing
    read more

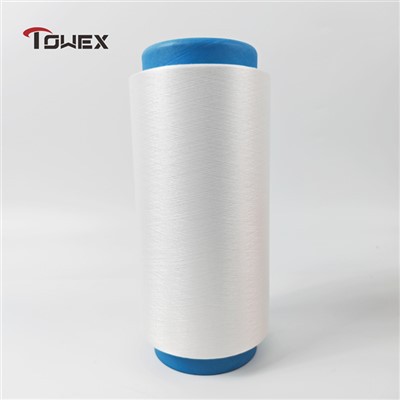

  • UHMWPE Denier Specifications From
    As a professional source factory for UHMWPE fiber, TOWEX produces a comprehensive range of deniers to serve diverse industries. Understanding the correlation between Denier (D) and its intended
    read more

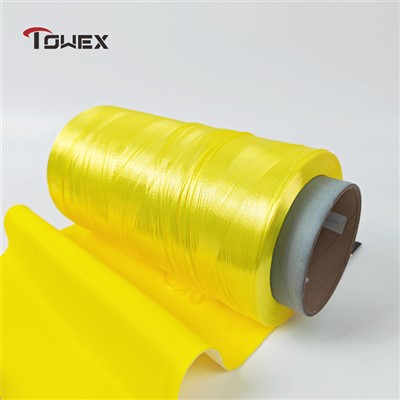

  • UHMWPE Yarn
    In the high-performance fiber industry, color is more than an aesthetic choice, it is a functional specification. At TOWEX , our colored UHMWPE (Ultra-High Molecular Weight Polyethylene) yarns are
    read more

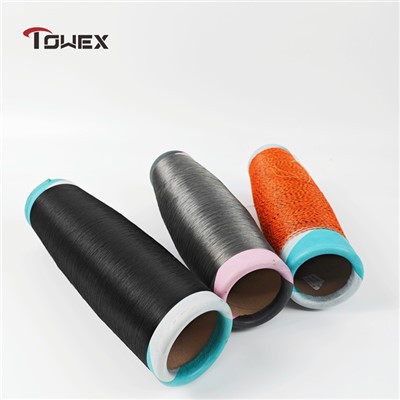

  • UHMWPE Twisting and Covering Solutions
    At TOWEX , we believe that the raw fiber is only the beginning.We use our own high-tenacity yarns to weave our Ultra Fabrics to meet the rigorous demands of downstream weaving, knitting, and rope
    read more
  • UHMWPE Knitted Fabric
    UHMWPE knitted fabrics represent the next generation of high-performance textiles. By combining the extreme tenacity of UHMWPE fibers with the flexibility of modern knitting structures, TOWEX
    read more

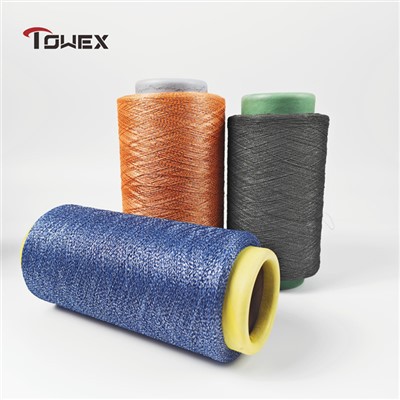

  • UHMWPE Woven Fabric
    Unlike traditional knits, UHMWPE Woven Fabrics provide the ultimate dimensional stability, extreme tear strength, and low elongation required for structural safety and rugged utility. At TOWEX , we
    read more

UHMWPE Twisting and Covering Solutions



Key Features

High Molecular Weight (4.5 -- 9.0 x 10^6 g/mol): Prevents chain disentanglement under high shear and mechanical stress.


Low Coefficient of Friction (0.10 -- 0.22): Resists abrasive wear and reduces energy consumption in sliding contact applications.


Impact Resistance: Maintains structural integrity under repeated high-load impacts down to cryogenic temperatures (-269°C).


Chemical Inertness: Resists most acids, alkalis, and organic solvents; non-wetting surface prevents material buildup.



Technical Specifications



Property

Test Method

Typical Value

Unit

Average Molecular Weight

Viscosity Measurement

4.5 -- 9.0

x 10^6 g/mol

Density

ISO 1183

0.930 -- 0.935

g/cm³

Bulk Density

ISO 60

0.40 -- 0.45

g/cm³

Particle Size (D50)

Laser Diffraction

120 -- 220

μm

Tensile Strength at Yield

ISO 527

>= 21

MPa

Tensile Strength at Break

ISO 527

>= 40

MPa

Elongation at Break

ISO 527

>= 350

%

Charpy Impact Strength (Notched)

ISO 179

>= 120

kJ/m²

Shore Hardness

ISO 868

63 -- 68

Shore D

Melting Point

ISO 11357

130 -- 136

°C



Material Composition

Base Polymer

100% Virgin Ultra-High Molecular Weight Polyethylene homopolymer.

Additives

Unfilled standard grades contain zero processing aids or fillers. Lubricated, anti-static, or UV-stabilized custom masterbatches are available upon request.

Contaminant Control

Processed in closed-loop polymerization reactors with strict particle filtration to eliminate metallic and foreign polymer impurities.



Applications


Extruded Profiles

Conveyor guide rails, wear strips, cable channels, and ski base plates.

Compression Molded Blocks

Large sheets, crane outrigger pads, marine fender facings, and structural machined components.

Sintered Tubes & Rods

Mechanical bushings, bearings, valve seats, and scraper blades.

Specialty Uses

Battery separators, filtration membranes, and orthopedic implant blanks.





Customization Options

Molecular Weight Tailoring: Production runs adjustable between 3.0 x 10^6 and 9.0 x 10^6 g/mol based on processing parameters (ram extrusion vs. compression molding).
Particle Size Grading: Fine-powder fractions for specialized sintering or coarse fractions for bulk powder flow.


Functional Additives
Anti-Static: Carbon black or permanent antistatic agents for explosion-hazard environments.
Lubricated: Silicone or wax-modified grades for lower static friction coefficients.
UV-Stabilized: Carbon black compounding for outdoor and marine applications.
Need a custom molecular weight or bespoke filler? Consult our polymer lab.

UHMWPE Twisting and Covering Solutions




Quality Control

01/

Manufacturing Capacity: Backed by an annual production capacity of 15,000 metric tons across automated polymerization lines.

02/

Laboratory Testing: Equipped with Ubbelohde viscometers, laser particle size analyzers, and melt flow indexers to verify every production lot.

03/

Batch Testing: Every production lot undergoes rigorous laboratory verification for molecular weight, bulk density, and particle size distribution.

04/

Impediment Inspection: Automated optical sorting systems monitor resin powder streams to reject black specks and cross-contamination.

05/

Documentation: Each shipment includes an official Certificate of Analysis (CoA) conforming to ISO 9001 quality management standards.

06/

Sample Archiving: Reference samples from every production batch are retained in climate-controlled storage for 24 months.



Packaging & Shipping





Packaging Formats

  • 25 kg multi-layer paper-plastic composite bags with moisture-barrier inner liners.
  • 500 kg or 1000 kg heavy-duty polypropylene FIBC bulk bags (jumbo bags).


Palletization: Fumigation-free wooden pallets, shrink-wrapped and corner-protected for international container shipping.
Storage Recommendations: Store in dry, well-ventilated indoor spaces below 40°C, protected from direct sunlight and static discharge sources.



FAQ



Q: How do you control batch-to-batch viscosity and molecular weight consistency?

A: We utilize continuous slurry polymerization control systems paired with inline catalyst metering. Viscosity-average molecular weight (Mv) is measured via dilute solution viscometry for every 10-ton production lot to maintain stability within a +- 5% tolerance band.

Q: What is the minimum order quantity (MOQ) for custom-formulated or additive grades?

A: Standard virgin grades are stocked for immediate dispatch with an MOQ of 1 ton (1000 kg). Custom additive formulations (e.g., anti-static or UV-stabilized masterbatches) require a minimum run of 3 tons to account for reactor cleaning and compounding line stabilization.

Q: Can you provide third-party regulatory compliance documents for food contact applications?

A: Yes. Our virgin non-additive UHMWPE grades comply with FDA 21 CFR 177.1520 for direct food contact and EU Regulation No. 10/2011. Compliance declarations and migration test reports are available upon request.

Q: What are the recommended processing temperatures for ram extrusion?

A: Barrel temperature profiles typically range from 180°C in the feed zone up to 220 -- 260°C in the compression and die zones. Actual settings depend on the extruder geometry, output rate, and specific molecular weight of the resin batch.

Q: How do you prevent moisture absorption during ocean freight transport?

A: Our packaging incorporates a sealed polyethylene inner liner inside the 25 kg bags and moisture-barrier film sealing on FIBC jumbo bags. Pallets are completely wrapped with heavy-duty stretch film to eliminate humidity ingress during maritime transit.



modular-1
Request for Quotation

To generate an accurate technical quotation and freight estimate, please provide the following details in your inquiry:
Grade Requirement: Standard extrusion, compression molding, or specific additive grade.
Target Molecular Weight / Melt Index Specs: If applicable.
Order Volume: Metric tons per shipment / Annual consumption.
Destination Port / Delivery Address
Required Documentation: TDS, CoA, FDA/EU food contact declarations.
