Product Overview



The TOWEX flame-retardant fabric series (engineered via industrial grades such as TW6002 and TW6502) is built for high-risk thermal environments where active fire exposure, intense radiant heat, and electric arc hazards threaten operator safety. Constructed from intrinsic heat-resistant polymers—including Meta-Aramid (Aramid 1313), Para-Aramid (Aramid 1414 / Kevlar), and anti-static core-spun configurations—these technical textiles eliminate reliance on post-treatment chemical dips.

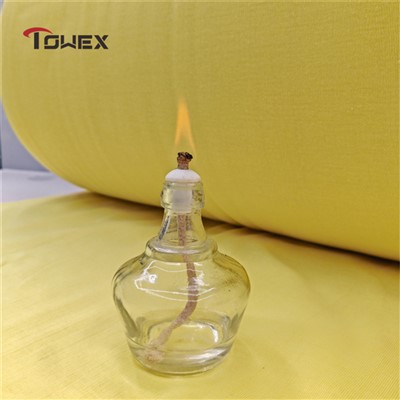

  • Fabric Fire Protection
    The TW6002 is a high-performance thermal barrier from the TOWEX Flame-Retardant collection. Engineered from premium Para-Aramid (Aramid 1414 / Kevlar) fibers, this specialized knit fabric is designed
    read more
  • Static Resistant Fabric
    The TW6502 is a high-performance technical textile engineered by TOWEX for high-risk environments where fire hazards and static electricity intersect. This lightweight 210 GSM Woven Fabric features a
    read more

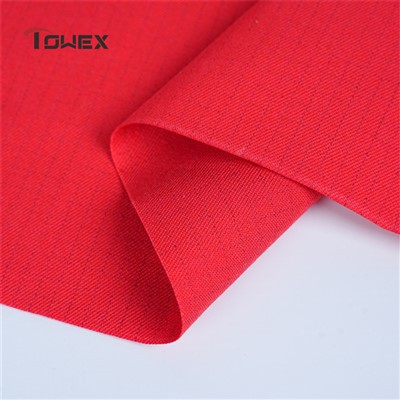

  • Thermal Resistant Aramid FR Woven Fabric
    The TW6503 is a specialized high-performance textile engineered by TOWEX for environments where fire and static electricity represent a dual threat. This lightweight 200 GSM Woven Fabric utilizes a
    read more

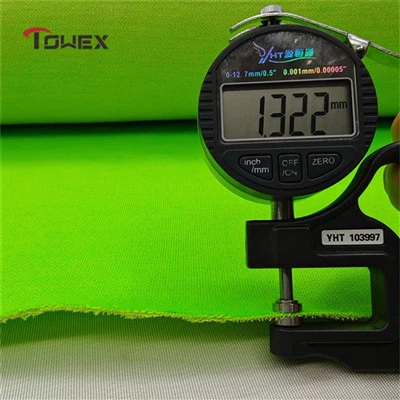

  • Fire Flame Fabric
    The TW62324 Fluorescent Green is a masterclass in safety textile innovation from TOWEX. This high-performance Aramid Hybrid Knit integrates Hybrid Aramid Engineering (1313/1414). By combining the
    read more

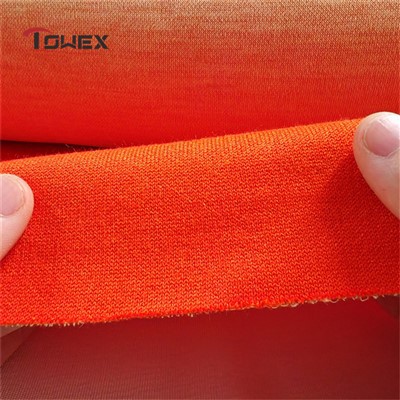

  • Hi-Viz Orange Aramid FR Fabric
    The TW62325 Orange is a specialized high-performance textile engineered by TOWEX for elite technical rescue and industrial safety. This weight 400 GSM Aramid Knit utilizes a proprietary blend of
    read more

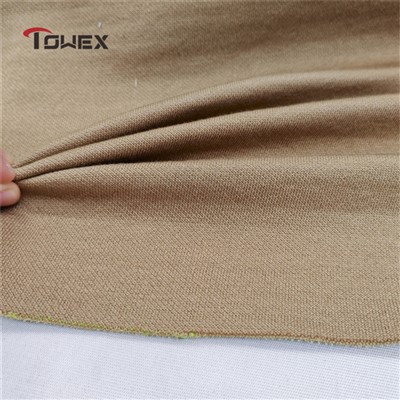

  • Flame Resistant Fabric
    The TW62329 Khaki is the professional’s choice for versatile thermal defense. Engineered by TOWEX, this high-performance Aramid Hybrid Knit integrates the heat-stabilizing properties of Meta-Aramid
    read more


Key Features

01/

Intrinsic Thermal Stability: Manufactured using inherent aramid polymers that char rather than melt or drip under direct flame exposure, eliminating secondary skin-burn risks.

02/

Permanent Flame Retardancy: Chemical-free flame resistance derived directly from the polymer backbone; flammability ratings remain uncompromised after repeated commercial laundering.

03/

Controlled Thermal Shrinkage: Warp and weft yarn stabilization limits fabric contraction under extreme convective heat, maintaining vital dead-air insulation layers inside multi-layer garments.

04/

Optimized Strength-to-Weight Ratio: High-tenacity aramid architecture delivers exceptional tear and puncture resistance without adding unnecessary thermal burden to the wearer.





Technical Specifications



Technical Parameter

Specification Range

Test Method / Standard

Fabric Style / Series

TW6002 (Knit) / TW6502 (Woven) / TW62325 (Aramid Hybrid)

Internal Engineering Code

Weight (GSM)

180 g/m² - 450 g/m² ± 5%

ASTM D3776 / ISO 3801

Fiber Composition

Meta-Aramid / Para-Aramid / Anti-static / FR Viscose blends

ISO 1833 Quantitative Analysis

Limiting Oxygen Index (LOI)

>= 28% - 32% (Grade Dependent)

ASTM D2863 / ISO 4589-2

Tensile Strength (Warp/Weft)

Warp: >= 800 N, Weft: >= 700 N

ISO 13934-1

Tear Strength (Warp/Weft)

Warp: >= 50 N, Weft: >= 45 N

ISO 13937-2

Thermal Shrinkage (180°C, 5 min)

< 2.0%

ISO 17493

Surface Resistivity

10^6 - 10^9 Ω (Anti-static variants)

EN 1149-1

Standard Roll Length

50 m - 100 m per roll (Customizable)

Factory Standard



UHMWPE UD Fabric



Material Composition

The foundation of TOWEX thermal protective fabrics relies on precise polymer engineering and raw material selection:


Meta-Aramid (Nomex Equivalent): Serves as the primary thermal backbone. When exposed to high heat, the fiber swells and thickens, forming an impenetrable carbonaceous barrier that blocks thermal energy transfer.


Para-Aramid (Kevlar / Aramid 1414): Blended into high-stress zones or hybrid weave patterns to deliver outstanding mechanical tensile strength, structural rigidity, and tear endurance under harsh physical duress.


Anti-Static Filaments: Embedded carbon-infused or stainless-steel micro-filaments designed to continuously bleed off electrostatic charges, complying with strict ATEX and petroleum industry anti-ignition specifications.





Applications

Firefighting & Technical Rescue: Outer shells, moisture barriers, and thermal insulation liners for structural and wildland firefighting turnout gear.


Industrial Workwear & Utilities: Arc-flash protective apparel for electrical power grid maintenance, utility switchgear operations, and high-voltage line technicians.


Petrochemical & Oil/Gas: Anti-static and flame-retardant coveralls deployed in refineries, offshore platforms, and chemical processing facilities handling volatile gases.


Motorsports & Aviation: Flame-resistant racing suits, interior cabin insulation liners, and specialized flight deck protective apparel.

Aramid Weave Bulletproof Fabric



Customization Options

We provide direct OEM/ODM engineering parameters tailored to specific regional tender and garment design requirements:

Weight & Density Tuning

Adjusting GSM profiles from lightweight base-layer knits (180 GSM) to heavy-duty structural woven outer layers (450 GSM).

01

Color & Hi-Vis Integration

Dope-dyed aramid fibers available in tactical navy, khaki, high-visibility orange, and fluorescent yellow, offering superior UV colorfastness and resistance to fading.

02

Functional Finishes

Optional durable water-repellent (DWR), oil-resistant, or chemical-splash treatments applied via continuous pad-dry-cure finishing lines.

03

Width Specifications

Standard usable widths ranging from 148 cm to 152 cm, with custom slit-to-width roll options available upon request.

04



Quality Control & Laboratory Verification

Every production meter undergoes strict quality verification within our certified in-house testing laboratory prior to packaging:

1

Raw Material Screening

Incoming aramid filament lots are tested for linear density consistency, single-end breaking tenacity, and moisture regain.

2

In-Line Automated Inspection

Automated Optical Inspection (AOI) systems monitor weaving and knitting continuity on the loom to prevent broken picks, knots, or density discrepancies.

3

Rigorous Laboratory Testing

Random samples from every batch undergo vertical flammability testing (tested to ISO 15025 / ASTM D6413 via Govmark vertical testers) and dimensional stability checks in thermal convection ovens (200°C exposure).

4

Traceability

Each roll is marked with a secure tracking barcode linked directly to raw material lot numbers, production shift logs, and physical test reports. Third-party testing reports from ISO-accredited labs (SGS/Intertek) are available for compliance verification.



Packaging & Shipping

Packaging Structure

Rolls are wound onto high-density rigid paper cores, wrapped in inner moisture-proof polyethylene film, and sealed inside heavy-duty woven outer bags to prevent transit friction, fiber contamination, or moisture damage.



Palletization

Export-grade fumigation-free wooden pallets or sturdy plastic pallets secured with stretch wrap and corner edge protectors for maritime container shipping.



Logistics Support

Flexible commercial shipping terms (FOB, CIF, DDP) via container freight or air cargo for rapid sample evaluations and urgent production runs.





FAQ



Q: How do you prevent color fading or batch-to-batch shade variation?

A: We utilize high-temperature dope-dyeing technology for aramid fibers, locking color pigments directly into the polymer solution before fiber extrusion. This guarantees exceptional UV resistance and eliminates shade discrepancies across large-scale garment manufacturing batches.

Q: Can you engineer custom fabric weights or hybrid weaves for specific safety tenders?

A: Yes. As a direct manufacturing mill, our technical engineering team formulates custom blend ratios (such as specific Meta/Para-Aramid proportions) and adjusts GSM parameters to meet specialized regional tender specifications.

Q: What is the standard minimum order quantity (MOQ) for custom colors and specifications?

A: For standard stock configurations, low trial sample quantities are readily available. For custom-dyed colors or specialized GSM weaving configurations, the standard MOQ starts at 1,000 meters per specification, subject to raw material inventory.

Q: What quality documentation is included with a commercial shipment?

A: Every shipment includes a formal Certificate of Analysis (COA) detailing exact physical test metrics—including tensile strength, tear resistance, weight, and flammability performance—cross-referenced directly to the roll identification numbers.



modular-1
RFQ

To receive an accurate technical quotation, lead time, and sample dispatch schedule, please provide our engineering team with your project specifications:
Target Application / End-Use: (E.g., Structural firefighting, oilfield workwear, arc flash protection)
Required Technical Parameters: (Target GSM, composition preference, preferred color or hi-vis requirement)
Compliance Standards Needed: (E.g., ISO 11612, EN 1149, NFPA 2112)
Project Volume: (Estimated annual volume or initial trial order quantity in meters)
Destination Port / Delivery Terms: (FOB / CIF / DDP)
