Product Overview



The Ballistic Center series provides engineered Ultra-High Molecular Weight Polyethylene (UHMWPE) Unidirectional (UD) composite matrices specifically manufactured for global defense OEMs, soft armor converters, and hard ballistic plate producers.
Produced via precision-controlled 0/90 degrees and multi-axis cross-ply lamination, our material architecture transforms high-modulus gel-spun polyethylene filaments into high-energy-absorption structural sheets. Designed for direct integration into NIJ-compliant soft body armor panels, rigid ballistic inserts, and tactical helmet shells, our matrix delivers optimized kinetic energy dispersion and low back-face signature (BFS).


  • UHMWPE Ballistic Fabric
    TOWEX 2UD series represents the pinnacle of ballistic engineering. Utilizing a 0/90°cross-ply construction of premium Ultra-High Molecular Weight Polyethylene (UHMWPE) fibers, our 2UD fabric offers
    read more

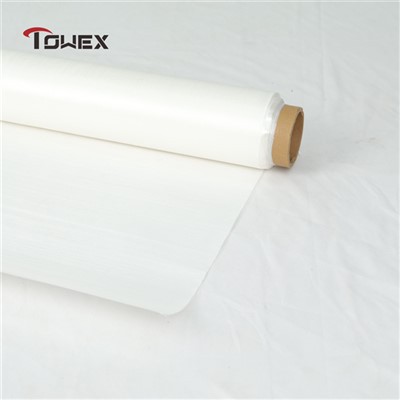

  • 4UD High-Performance Ballistic UD Sheet
    The TOWEX 4UD series is the Golden Standard for modern ballistic solutions. Engineered for Industry Standard NIJ Level IIIA Soft Armor, this 4-layer unidirectional matrix provides the optimal balance
    read more

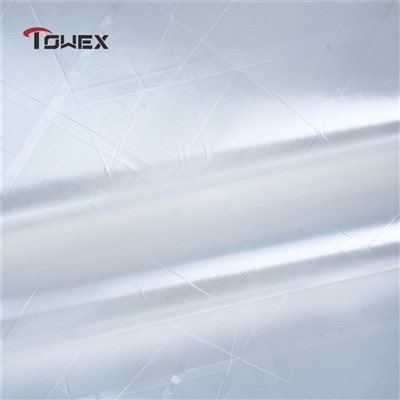

  • 6UD Rigid Reinforcement Ballistic Material
    TOWEX 6UD is a heavy-duty, multi-layered ballistic composite designed for Rigid Armor Applications. By integrating six layers of high-strength UHMWPE fibers into a single UD sheet, we provide a
    read more

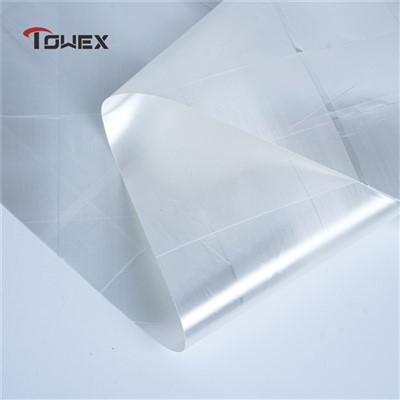

  • Soft and Hard UHMWPE UD Series
    At TOWEX, we engineer specialized Ultra-High Molecular Weight Polyethylene (UHMWPE) Unidirectional (UD) fabrics tailored for specific ballistic threats. Understanding the difference between Soft UD
    read more

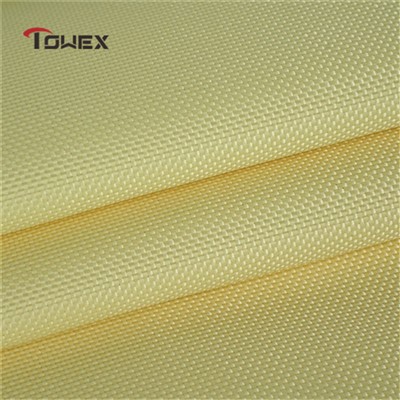

  • Aramid Weave Bulletproof Fabric
    This comprehensive guide correlates fiber denier, fabric weight, and the estimated layer requirements to meet international ballistic standards (NIJ 0101.06).
    read more

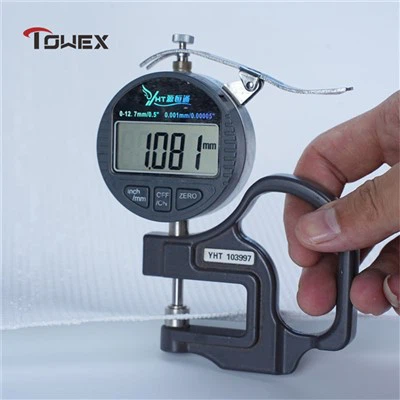

  • UHMWPE UD Fabric
    TOWEX UHMWPE Woven Series is engineered for applications where extreme cut resistance, durability, and multi-hit ballistic integrity are paramount. Unlike standard UD (Unidirectional) materials, our
    read more

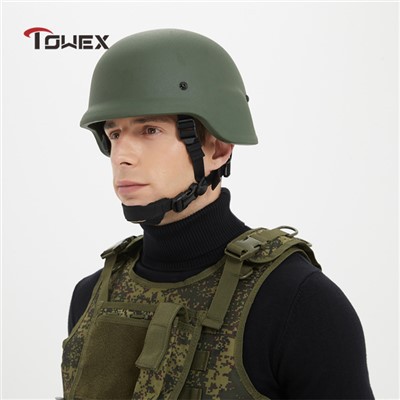

  • Ballistic Solutions for M88 Helmets
    The PASGT (Personnel Armor System for Ground Troops), commonly known as the M88, is the most battle-proven helmet geometry in modern history. Designed for maximum surface area coverage, it remains
    read more

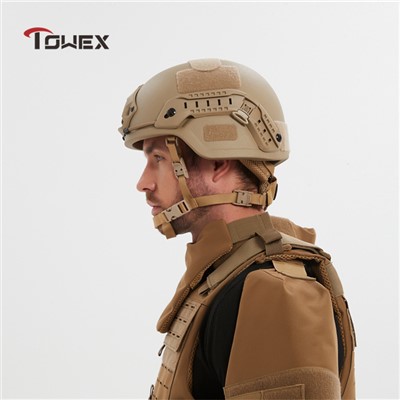

  • NIJ IIIA Helmet
    The MICH (Modular Communications Helmet), also known as the ACH (Advanced Combat Helmet), remains the global standard for infantry and law enforcement. Its design requires a perfect synergy between
    read more

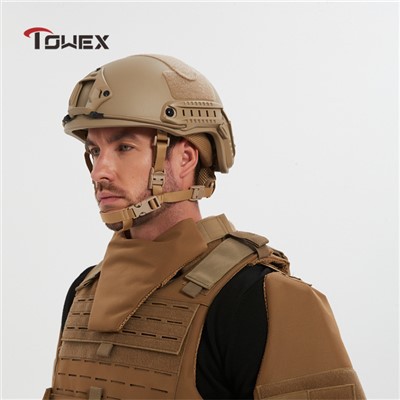

  • FAST Ballistic Helmets UD Materials
    The FAST (Future Assault Shell Technology) helmet is defined by its High-Cut geometry, designed for maximum modularity and lightweight performance. At TOWEX, we are the Source Factory for the
    read more

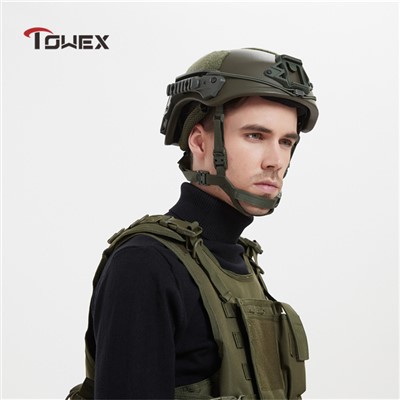

  • UD Materials for WENDY Helmets
    The WENDY style helmet is world-renowned for its revolutionary shell geometry and superior impact liner systems. Achieving the complex curves of a WENDY-style shell requires a material with
    read more

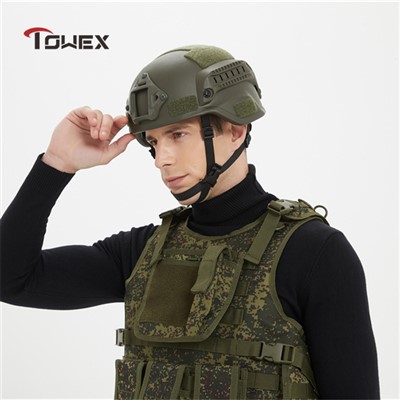

  • Custom Ballistic Material Solutions
    At TOWEX, we understand that modern tactical requirements are never one-size-fits-all. As a leading Source Factory of high-performance UHMWPE UD (Unidirectional) materials, we provide full-spectrum
    read more

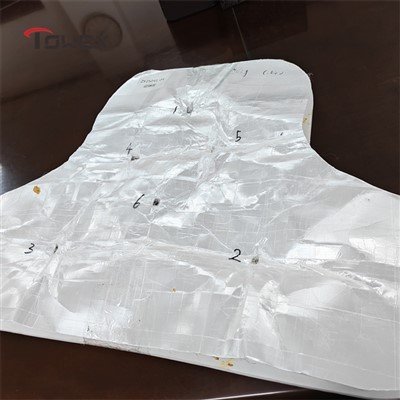

  • NIJ IIIA UHMWPE UD Solution
    As the Source Factory for high-performance UHMWPE (Ultra-High Molecular Weight Polyethylene) Unidirectional (UD) fabrics, TOWEX offers a specialized range of UD materials specifically engineered to
    read more
First 12 Last

Custom Ballistic Material Solutions



Key Features

Precision Cross-Ply Architecture: Multi-axis spreading and 0/90 degrees lamination ensure isotropic stress distribution upon high-velocity projectile impact.


Optimized Resin Matrix Integration: Proprietary polyurethane/epoxy resin dispersion provides stable inter-laminar shear strength, preventing delamination under dynamic thermal and humidity stress.


High Specific Strength: Specific tensile strength exceeds high-grade steel by up to 10 times, minimizing operator equipment load without degrading ballistic thresholds.


Environmental Stability: Inherently hydrophobic; exhibits high resistance to UV radiation, chemical exposure, seawater immersion, and sub-zero operational deployment.



Technical Specifications



Series Model

Target Application

Fiber Modulus (GPa)

Areal Density (g/m²)

Ply Construction

Resin Content (%)

Executive Standard

TWX-2UD

Flexible Soft Armor Panels

>= 110

130 - 150

0/90 degrees Cross-Ply

16 ± 2

NIJ Level IIA / II

TWX-4UD

NIJ IIIA Soft Armor & Vests

>= 115

200 - 240

4-Layer Unidirectional Matrix

15 ± 2

NIJ 0101.06 Level IIIA

TWX-6UD

Rigid Plates & Helmet Shells

>= 120

300 - 380

Multi-Layer Rigid Composite

14 ± 2

NIJ Level III / IV Backing

TWX-HD

Specialized Hard Armor / Vehicle Panels

>= 125

450 - 550

Heavy-Duty Structural Sheet

12 ± 2

STANAG 4369 Level I/II





Material Composition & Structural Physics

Raw Polymer Base

100% gel-spun Ultra-High Molecular Weight Polyethylene (molecular weight: 5.0 x 10^6 to 6.0 x 10^6 g/mol).

Filament Tenacity

Single-fiber tenacity exceeds 38 cN/dtex, featuring a crystalline molecular orientation optimized for maximal shock-wave propagation velocity (>11,000 m/s).

Consolidation Physics

Layers are thermally consolidated under calibrated hydraulic pressure and multi-zone temperature profiling, fusing individual filaments into an integrated impact energy sink.





Applications

Soft Body Armor Panels: Core flexible constituent for concealed and tactical vests providing protection against 9mm Luger, .44 Magnum, and fragmentation threats.


Hard Armor Backing Plates: Functions as the structural energy-absorbing backing bonded behind ceramic strike faces (Alumina, Silicon Carbide, Boron Carbide) for NIJ Level III and IV rifle plates.


Ballistic Helmets: Utilized for high-pressure compression molding of PASGT (M88), MICH/ACH, and FAST-cut geometry helmets.


Vehicle & Structural Armor: Lightweight protective panels for tactical transport interior lining, aircraft security doors, and modular safe rooms.

Custom Ballistic Material Solutions



Customization Options



Width Range

Standard industrial master rolls available from 1,000mm up to 1,600mm to match client automated cutting-table dimensions.

01

Areal Density Tuning

Customized weight configurations tailored to specific target V50 ballistic thresholds.

02

Resin Formulation

Adjustable matrix stiffness (ranging from flexible soft-armor feel to rigid high-modulus board) to suit hot-press or autoclave manufacturing parameters.

03

Surface Treatment

Corona-treated or untreated film surfaces available to optimize bonding compatibility with external outer covers or ceramic adhesives.

04



Quality Control & Testing Standards


In-House Ballistic Laboratory

Every production lot undergoes V50 ballistic limit verification in accordance with US MIL-STD-662F and NIJ 0101.06 protocols using standardized test fixtures.

Physical Property Inspection

Daily testing regime includes tensile strength verification (ASTM D638), areal density gravimetric analysis, resin content burn-off test, and layer thickness uniformity mapping via digital micrometer arrays.

Batch Traceability

Each master roll is assigned a unique barcode linked to raw material lot numbers, autoclave pressure logs, and operator identification codes for full audit traceability.




Packaging & Shipping

01/

Core Specifications: Wound onto heavy-duty high-density polyethylene (HDPE) or paper cores (inner diameter: 76mm / 3 inches).

02/

Protective Packaging: Vacuum-sealed in anti-static, moisture-barrier aluminum foil laminate bags with silica gel desiccant packs to prevent humidity absorption during transit.

03/

Outer Protection: Suspended inside heavy-duty corrugated wooden crates or reinforced cardboard boxes, secured with edge protectors to prevent transit edge-crushing.

04/

Logistics Compliance: Accompanied by full Material Safety Data Sheets (MSDS) and non-hazardous declarations for international air and ocean freight.



FAQ



Q: What is the minimum order quantity (MOQ) for custom-width or custom-density rolls?

A: Answer: Standard stock configurations carry an MOQ of 500 square meters. For customized areal densities, specific resin contents, or non-standard widths, the MOQ is typically 2,000 square meters per specification to accommodate factory line changeovers.

Q: Can you provide third-party ballistic test reports (e.g., HP White, BMT)?

A: Answer: Yes. Full test reports conducted by accredited third-party ballistic laboratories (verifying NIJ Level IIIA and NIJ Level III/IV performance parameters) are available upon execution of a Non-Disclosure Agreement (NDA) or during formal sample evaluation phases.

Q: What hot-press parameters are recommended for molding rigid helmet shells using TWX-6UD?

A: Answer: Standard processing requires a multi-stage hydraulic press setup: preheating at 115 degrees C to 120 degrees C for 15 to 20 minutes, a molding pressure of 12 to 15 MPa applied gradually, followed by cooling under pressure down to 40 degrees C before demolding. Detailed processing guide sheets are provided with every initial commercial shipment.

Q: How do you control batch-to-batch consistency in V50 ballistic performance?

A: Answer: Batch uniformity is guaranteed through automated tension-controlled fiber spreading, real-time computerized resin metering, and strict statistical process control (SPC) across all lamination parameters. A representative coupon from every 1,000 meters is test-fired in our ballistic range prior to roll packaging.



modular-1
RFQ

To receive a detailed Technical Data Sheet (TDS), quotation, or to request test samples for laboratory evaluation, please provide your project specifications below:
Target Application: (E.g., Soft Armor, Hard Plate Backing, Helmet Shell)
Target Ballistic Standard: (E.g., NIJ Level IIIA, NIJ Level IV)
Required Quantity: (Square meters or metric tons per annum)
Destination Port / Incoterms: (FOB / CIF)
