As the Source Factory for high-performance UHMWPE (Ultra-High Molecular Weight Polyethylene) Unidirectional (UD) fabrics, TOWEX offers a specialized range of UD materials specifically engineered to pass NIJ 0101.06 Level IIIA requirements. Our materials provide the ultimate balance between maximum protection, ultra-low weight, and superior flexibility.
NIJ IIIA UD Material Selection Matrix
We provide two primary UD configurations depending on the end-user's needs (Soft Insert vs. Rigid Plate).
|
TOWEX Model |
Composition |
Areal Density (g/m2) |
Configuration |
Target Protection |
Key Benefit |
|
TW-S145 |
100% UHMWPE |
145 - 155 |
2UD / 4UD |
Soft Inserts |
Maximum flexibility for concealed vests and backpacks. |
|
TW-R160 |
100% UHMWPE |
160 - 175 |
6UD / 8UD |
Hard Plates |
High rigidity with extreme BFS (Back-Face Signature) control. |
Technical Specifications & Layer Estimation
How many layers of UD are needed for NIJ IIIA? Below our tested technical guide for the .44 Magnum and 9mm threats.
Option A: Soft Ballistic Insert (Flexible)
● Material: TOWEX TW-S145 (4-ply Soft Matrix)
● Estimated Layers: 33 - 36 Layers
● Total Weight: ~5.2 kg/m²
● Technical Performance: Designed for "Next-to-Skin" comfort. High energy absorption cross-ply structure that captures the bullet in a "web-like" fashion.
Option B: Rigid Ballistic Plate (Pressed)
● Material: TOWEX TW-R160 (Rigid Matrix)
● Estimated Layers: 27 - 31 Layers
● Total Weight: ~4.8 kg/m²
● Technical Performance: Optimized for the rmoforming at 125°C. The rigid matrix minimizes the blunt trauma (BFS), ensuring it stays well under the 44mm NIJ limit.
Why TOWEX UD Outperforms Generic Materials
Exceptional V50 Stability

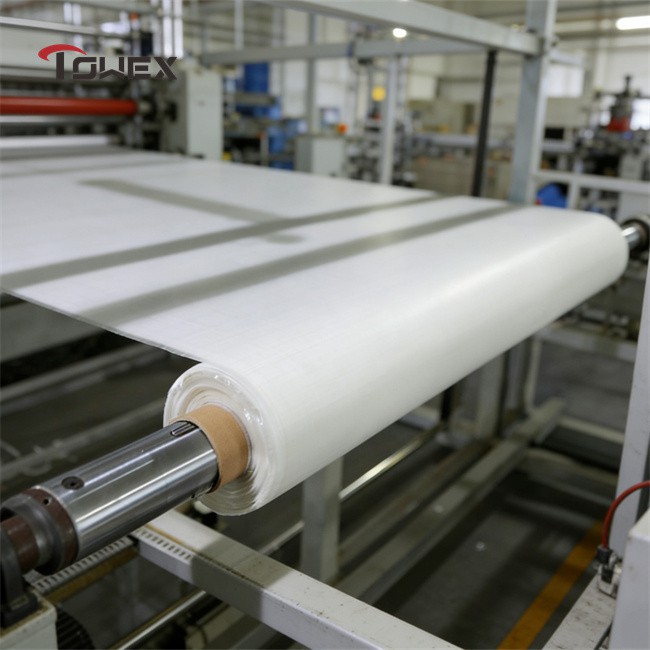

As a Source Factory, we use high-tenacity fiber (>35 cN/dtex). Our automated dipping process ensures the resin-to-fiber ratio is constant, guaranteeing that the V50 limit (17gr FSP) remains above 520 m/s.
Advanced Trauma Reduction
TOWEX UD features a specialized matrix resin that prevents the "punch-through" effect, significantly reducing the Back-Face Signature (BFS) which is critical for medical safety.
Multi-Hit Integrity

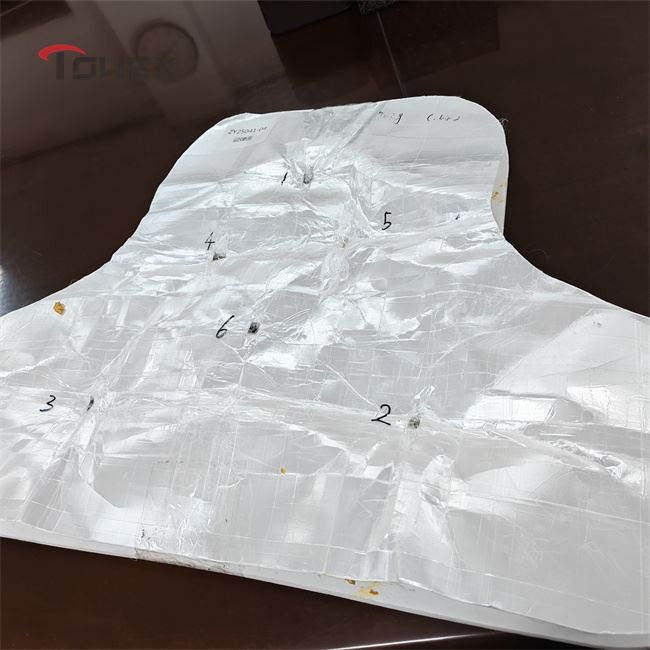

Our 0°/90°/0°/90° orthogonal lamination allows the material to withstand 6+ shots in a standardized NIJ IIIA test pattern without delamination.
Environmental Durability
TOWEX UD is naturally Waterproof, UV-Resistant, and Flame Retardant, maintaining its ballistic properties for 5-10 years in harsh tactical environments.
Technical Matrix: Protection Levels, Materials, and Firearms
This table is optimized for professional procurement, correlating TOWEX materials with international threat levels and common firearm platforms.
|
Protection Level (NIJ 0101.06) |
Plate Category |
TOWEX Material Solution |
Primary Threat / Common Firearms |
Key Performance Advantage |
|
Level IIIA |
Soft / Hard |
UHMWPE 4UD / 6UD |
.44 Magnum; 9mm Submachine Gun (e.g., MP5, Glock 17) |
Ultralight & concealable; ideal for daily law enforcement patrol. |
|
Level III |
Hard (Pure PE) |
UHMWPE 8UD / 10UD (Rigid Grade) |
7.62mm NATO (M80); 5.56mm (M193) (e.g., M14, FN FAL, AR-15) |
100% PE Construction; buoyant (floats in water) with elite multi-hit capability. |
|
Level III+ (RF2) |
Hard (Composite) |
Ceramic + PE 10UD Backing |
7.62x39mm (AK-47 MSC); 5.56mm (M855/SS109) |
Designed for AK-47 Mild Steel Core rounds; best-selling mid-tier solution. |
|
Level IV |
Hard (Composite) |
SiC/B4C Ceramic + PE 10UD |
.30-06 Springfield (M2 AP Armor Piercing) (e.g., M1 Garand, SVD Sniper) |
Maximum Protection; stops heavy armor-piercing rounds in high-intensity combat. |
