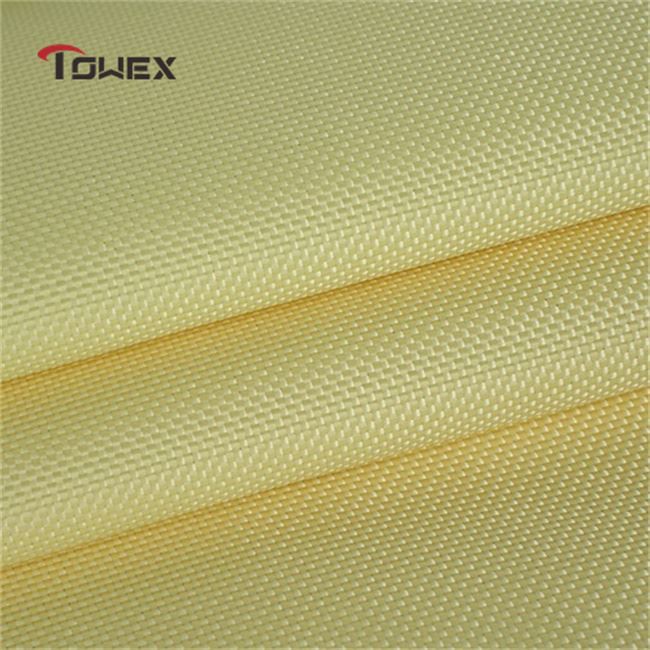

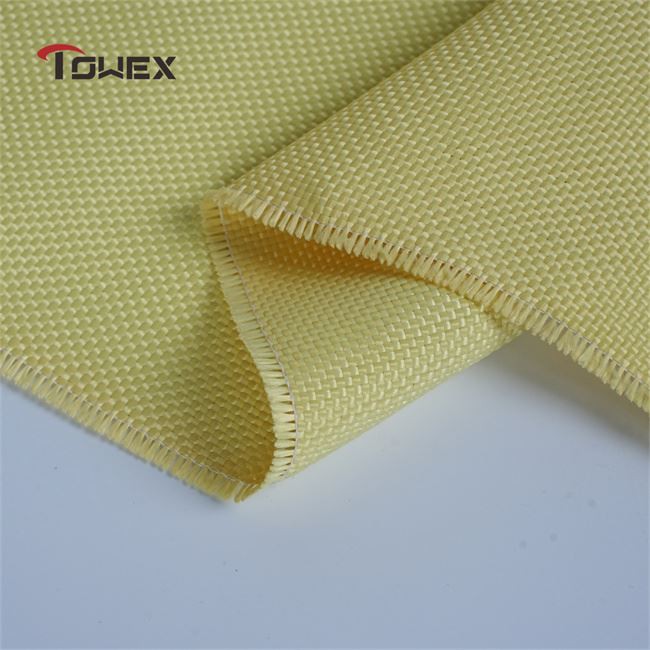

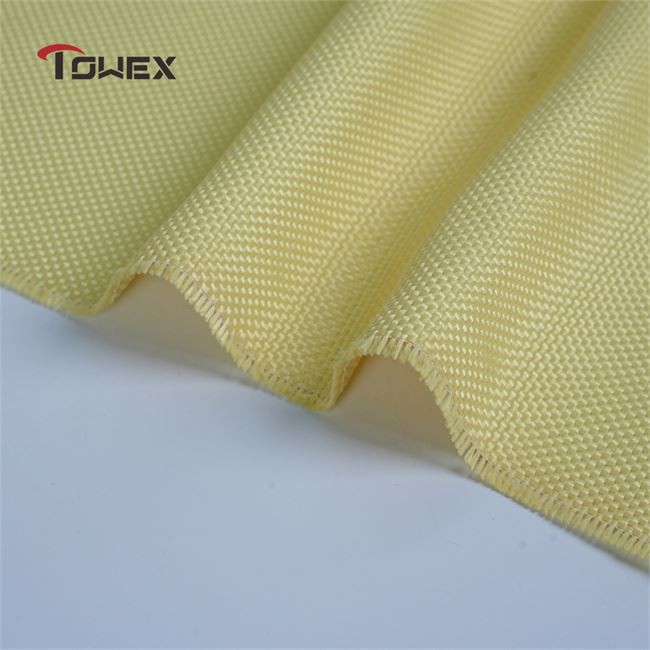

Jiaxing Towex New Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of aramid weave bulletproof fabric in China, featured by quality products and low price. Please rest assured to wholesale bulk aramid weave bulletproof fabric in stock here and get quotation from our factory. Customized orders are welcome.
This comprehensive guide correlates fiber denier, fabric weight, and the estimated layer requirements to meet international ballistic standards (NIJ 0101.06).
Technical Note: The layer counts provided are industry estimates based on standard resin-free soft armor configurations. Actual performance may vary based on vest design, backing material, and environmental conditions.
|
Fabric Model |
Fiber Denier (dtex) |
Areal Density (g/m2) |
Weave Pattern |
NIJ Level IIA (Layers) |
NIJ Level II (Layers) |
NIJ Level IIIA (Layers) |
Primary Application |
|
TW-170P |
1000D (1100 dtex) |
170 |
Plain |
20 - 24 |
26 - 30 |
36 - 42 |
VIP Concealable Vests, Hybrid UD Layers |
|
TW-200P/T |
1000D / 1500D |
200 |
Plain / Twill |
18 - 22 |
24 - 28 |
32 - 38 |
Standard Police Armor, Tactical Gear |
|
TW-280T |
1500D (1670 dtex) |
280 |
Twill |
14 - 18 |
20 - 24 |
28 - 34 |
Ballistic Helmets, Frag-Resistant Liners |
|
TW-410B |
3000D (3360 dtex) |
410 |
Basket / Plain |
10 - 14 |
16 - 20 |
22 - 28 |
Shield Reinforcement, Vehicle Armor |
|
TW-600H |
3000D (Industrial) |
600 |
Heavy Plain |
N/A |
N/A |
Hybrid Layer |
Explosion-Proof Blankets, Spall Liners |
Key Technical Differentiation
● V50 Performance (Fragmentation Resistance): Aramid woven fabrics are superior for stopping fragments (FSP). The interlocking weave structure stabilizes the projectile, making it the preferred choice for Ballistic Helmet Shells.

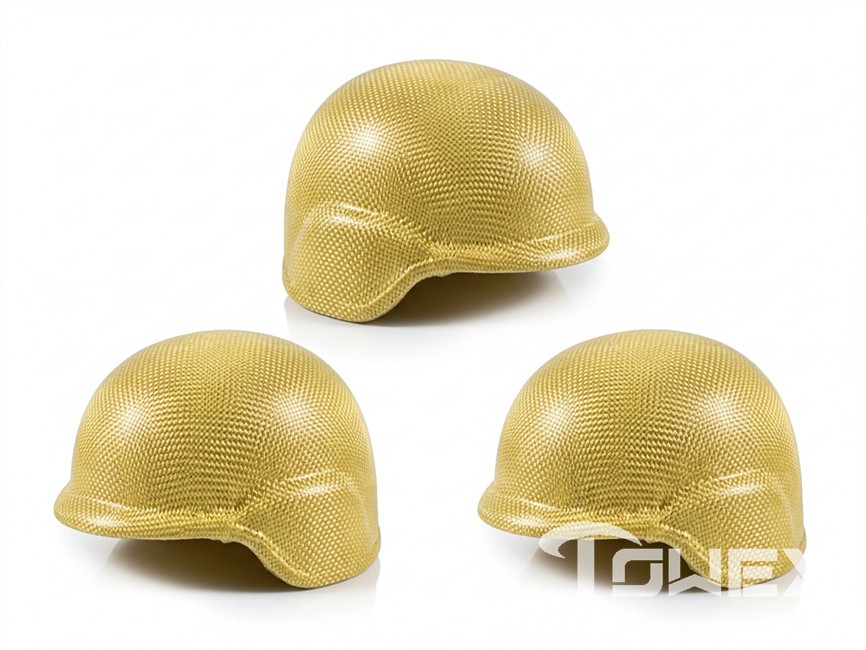

● Drape & Molding (Twill vs. Plain): TOWEX Twill Weave series offers high "Drape-ability," allowing the fabric to conform to complex curves in helmet molding without creasing, ensuring zero weak spots in the armor.
● Thermal & Chemical Stability: Unlike UHMWPE, TOWEX Aramid remains stable up to 350°C, making it essential for Fire-Retardant (FR) Ballistic Vests and tactical gear used in extreme heat environments.
● Hybrid Solutions: Many high-end clients use TOWEX Aramid Woven as the "Strike Face" combined with TOWEX UHMWPE UD as the "Backing" to achieve a perfect balance of thinness and multi-hit capability.
● Direct Source Factory for Ballistic Aramid Fabrics.
Product qualification
Our Certificate
We are Direct Manufacturer
Export Strength proves trustworthiness
Hot Tags: aramid weave bulletproof fabric, China aramid weave bulletproof fabric manufacturers, suppliers, factory
