Product Overview



Top UHM-WPE produces high abrasion resistant fabrics designed for industrial manufacturing, protective gear, and heavy-duty technical applications. Utilizing high-modulus polyethylene (HMPE/UHMWPE) and aramid fiber blends, these woven structures withstand severe friction, mechanical stress, and edge impacts without premature fiber degradation.
We control the entire conversion process within our manufacturing facilities—from raw yarn twisting and precision beam warping to multi-axis weaving and functional finishing. Physical properties are verified daily in our on-site testing laboratory to guarantee batch-to-batch consistency for industrial converters and brand manufacturers.

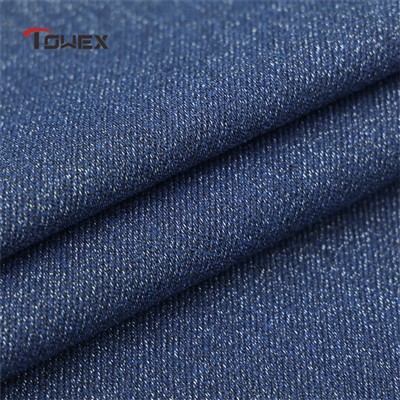

  • Denim UHMWPE Fabric Series
    The TW3110 is the ultimate fusion of street fashion and industrial-grade safety. Developed by TOWEX, this High-Performance UHMWPE Denim is engineered for the modern innovator who refuses to choose
    read more

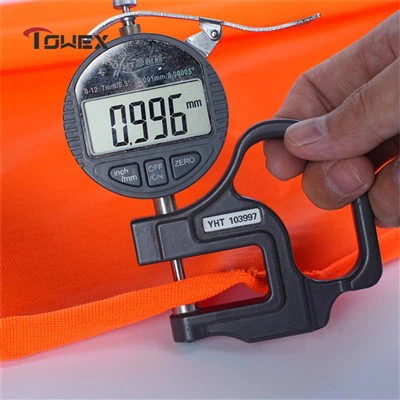

  • UHMWPE Composite Fabric
    The TW3145 Orange represents the next generation of ergonomic safety textiles. Engineered by TOWEX, this High-Stretch UHMWPE Functional Fabric is designed for the modern athlete and industrial
    read more

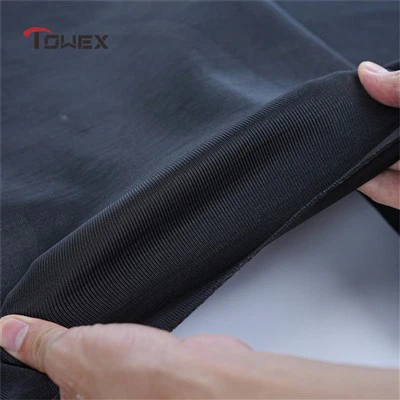

  • Abrasion Resistant Fabric
    The TW3188 is designed to bridge the gap between high-fashion aesthetics and professional-grade safety. Utilizing an advanced Coaxial Fiber-Wrapping Technique, this fabric conceals a high-mass UHMWPE
    read more

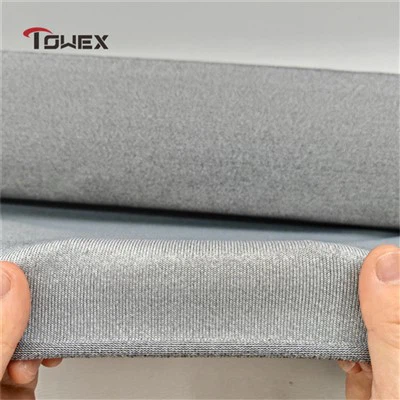

  • Core-Wrapped Stretch UHMWPE Fabric
    Utilizing advanced Coaxial Wrapping Technology, this fabric hides a high-tenacity Ultra-High Molecular Weight Polyethylene (UHMWPE) core within a soft, flexible sheath. This unique construction
    read more


Key Features

01/

Extreme Abrasion Threshold: Withstands over 5,000 to 10,000+ cycles under standardized Taber abrasion testing (CS-17 wheels, 1000g load), significantly outperforming standard nylon and polyester duck fabrics.

02/

High Strength-to-Weight Ratio: Delivers superior tensile and tear resistance at a lower areal density, reducing finished product weight without sacrificing mechanical protection.

03/

Low Coefficient of Friction: Natural self-lubricating surface properties of UHMWPE reduce heat buildup during continuous sliding contact against abrasive surfaces.

04/

Environmental Resistance: Impervious to moisture, salt water, most industrial chemicals, and ultraviolet (UV) degradation, maintaining physical integrity in outdoor and marine environments.



Technical Specifications



Parameter

Specification Range

Test Standard

Material Base

UHMWPE / Aramid / High-Tenacity Nylon Blend

ASTM D629

Areal Density (GSM)

200 GSM – 800 GSM (± 5%)

ASTM D3776

Thickness

0.35 mm – 1.80 mm

ASTM D1777

Taber Abrasion Resistance

> 5,000 Cycles (CS-17, 1000g)

ASTM D3884

Breaking Strength (Warp / Weft)

1,500 N – 4,500 N / 5cm

ASTM D5035

Tear Strength (Trapezoid)

250 N – 650 N

ASTM D5587

Cut Resistance Level

EN 388 Level 4 to Level F

ISO 13997

Standard Roll Width

1,500 mm (Customizable 1,000 mm – 1,800 mm)

ASTM D3774



Stab Resistant Fabric High-Performance



Material Composition & Weaving Architecture

The structural performance of our fabrics relies on engineered multi-component synergy:


Core Load-Bearing Yarns: Ultra-High Molecular Weight Polyethylene (UHMWPE) continuous filaments provide high tensile strength and impact absorption.


Abrasion Shield Yarns: Interwoven Para-aramid or high-twist nylon filaments reinforce surface contact points to prevent abrasive wear and thermal degradation.


Weave Patterns: Available in Plain, Twill, Ripstop, and Satin configurations optimized for specific flexibility requirements, drapability, and puncture defense.





Applications

Personal Protective Equipment (PPE): Cut-resistant workwear, chainsaw protection chaps, industrial safety gloves, and puncture-resistant boot inserts.


Tactical & Military Gear: Load-bearing vests, tactical pouches, plate carrier reinforcements, and rucksack bottom panels.


Motorcycle & Action Sports Apparel: Impact zones, sliding panels for racing suits, and abrasion-resistant reinforcement patches.


Industrial & Marine Logistics: Heavy-duty tool rolls, conveyor belt wear pads, cable protection sleeves, and inflatable boat hull armor.

Chew Resistant Fabric



Customization Options

We support OEM/ODM manufacturing parameters tailored to specific end-use engineering specifications:

Weight & Thickness Tuning

Adjusting warp and fill yarn denier to meet target GSM and stiffness requirements.

01

Functional Coatings

PU (Polyurethane), TPU lamination, or waterproof/oil-repellent (DWR) chemical finishes.

02

Color Integration

Solution-dyed black, olive drab, grey, or high-visibility yellow/orange (custom Pantone matching available for bulk runs).

03

Backing Treatments

Hot-melt adhesive backing for heat-sealable patches or anti-slip silicone dot coating.

04



Quality Control & Testing


Every production lot undergoes rigorous laboratory verification before export release:

In-House Testing Equipment

Equipped with Taber abrasion testers, universal tensile strength machines, Elmendorf tear testers, and Martindale abrasion rigs operated by certified textile engineers.

Batch Traceability

Unique roll identification tags containing production date, loom number, operator ID, and raw material lot numbers.

Compliance Standards

Manufacturing facilities operate under ISO 9001 quality management systems, with test reports supplied in accordance with ASTM and EN ISO protocols per shipment.



Packaging & Shipping

Roll Packaging

Wound on heavy-duty rigid paper cores (3-inch inner diameter), wrapped in moisture-resistant polyethylene film, and sealed in woven outer bags or corrugated cardboard boxes.

Export Logistics

Palletized and shrink-wrapped for standard container shipping (20GP / 40HQ) or air freight. Custom roll lengths available to minimize cutting waste in your facility.

Fulfillment Timeline

Standard sample yardage ships within 3 to 5 business days; bulk production orders require 15 to 25 business days depending on volume and specification complexity.



FAQ



Q: Can this fabric be processed using standard industrial sewing equipment?

A: Yes. Although UHMWPE is extremely cut-resistant, our fabric constructions are engineered with specific yarn twists and resin treatments to allow standard multi-needle lockstitch or chainstitch sewing machines to process the material cleanly using titanium-coated or heavy-duty industrial needles (size 110/18 to 140/22 recommended).

Q: What is the minimum order quantity (MOQ) and lead time for custom GSM or custom colors?

A: Standard black and grey variants in stock configurations have an MOQ of 300 meters per specification (shipping within 7 days). For custom GSM development, specialized weave patterns, or custom Pantone solution-dyed colors, the MOQ is 1,000 meters per production run, with a standard bulk lead time of 15 to 25 business days. Trial sample yardage is readily available for laboratory evaluation.

Q: How do you ensure batch-to-batch consistency for physical properties like breaking strength and thickness?

A: We implement strict tension-controlled warping and automated loom monitoring systems to maintain uniform yarn spacing and density. Each master roll is sampled at both ends and tested in our on-site laboratory for tensile strength and thickness according to ASTM guidelines. Physical test reports are archived and supplied with your commercial shipping documentation.

Q: Is the fabric treated with any chemical finishes for water or oil resistance?

A: Standard industrial grades are delivered raw or scouring-washed. Optional fluorocarbon-free (PFC-free) DWR (Durable Water Repellent), waterproof breathable membrane lamination, or flame-retardant (FR) chemical treatments can be applied during secondary finishing based on your environmental compliance requirements.

Q: What documentation is provided with export shipments for customs and compliance?

A: Each shipment includes a Commercial Invoice, Packing List, Certificate of Origin (CO), Bill of Lading, and a certified Certificate of Analysis (CoA) detailing the actual mechanical test results (tensile strength, tear resistance, and abrasion cycles) verified by our laboratory corresponding to the specific batch numbers shipped.



modular-1
RFQ

To receive an accurate technical quotation, please provide the following parameters in your inquiry:
Target Application: (E.g., Workwear reinforcement, motorcycle gear, industrial gloves)
Required Areal Density (GSM) or Thickness:
Performance Target: (E.g., Minimum Taber cycles, EN 388 cut level)
Estimated Order Volume: (Meters / Linear yards per order / Annual forecast)
Destination Port / Delivery Address:

Jiaxing Towex New Materials Co., Ltd. is one of the most experienced high abrasion resistant fabric manufacturers and suppliers in China, also supports customized service with low price. Please feel free to buy bulk high quality high abrasion resistant fabric in stock here from our factory. Contact us for quotation.
