Product Overview



The topuhmwpe.com Bite Resistant Fabric is an engineered technical textile built specifically for high-stress safety equipment, animal handling gear, and industrial protective garments. Formulated around a high-tenacity Ultra-High-Molecular-Weight Polyethylene (UHMWPE) continuous filament matrix blended with specialized high-modulus aramid fibers, this material delivers extreme tensile strength paired with multi-directional puncture and cut resistance.

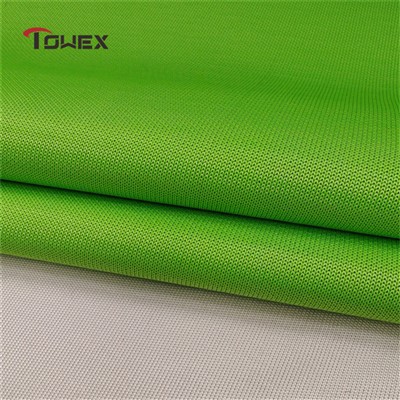

  • Chew Resistant Fabric
    The TW2304 Green is the premium standard for high-strength, animal-safe protective textiles. It engineered for the high-end pet market and rugged industrial use where fabric longevity and animal
    read more

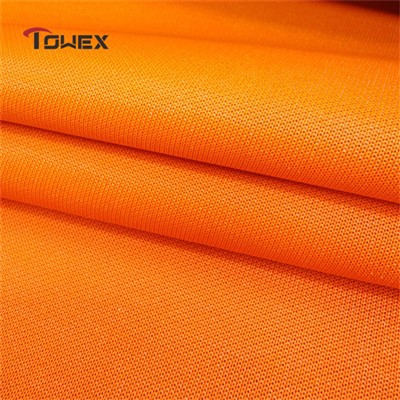

  • Tear-Resistant Safety Fabric
    The TW2305 Orange is a high-performance textile designed for visibility and uncompromising defense. Engineered by TOWEX using advanced UHMWPE technology, this fabric offers a high-strength solution
    read more

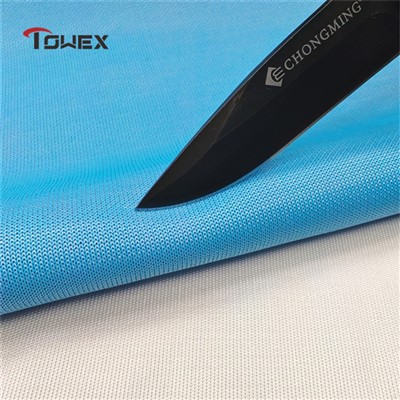

  • Antimicrobial Slash Resistant Fabric
    TW2307 provides a formidable barrier against biting, slashing, and industrial abrasion, fully compliant with EN388:2016 standards. Developed by TOWEX, this High-Tenacity UHMWPE Functional Fabric is
    read more

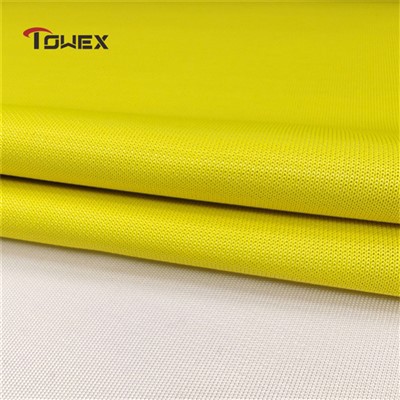

  • Bite Proof Fabric
    Developed using advanced UHMWPE weaving technology, this fabric is engineered to withstand the most aggressive mechanical stress, from razor-sharp feline claws to high-pressure canine bites.
    read more

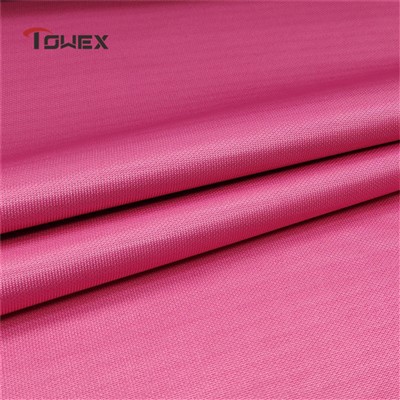

  • Custom Color Cut and Bite Fabric
    The TW2309 Pink is where elite-level protection meets high-end lifestyle design. Developed by TOWEX using our signature UHMWPE Ultra Fabric technology, this fabric breaks the mold of traditional
    read more


Key Features

01/

High Puncture Threshold: Dense molecular orientation and high-twist yarn architecture deflect and blunt sharp teeth, claws, and industrial needles, absorbing impact energy across multiple filament layers.

02/

Maximized Strength-to-Weight Ratio: Delivers EN 388 Level F cut protection at a fraction of the weight of traditional metallic mesh or heavy leather alternatives.

03/

Chemical and UV Stability: Resists degradation from organic solvents, salt water, acids, and prolonged ultraviolet exposure during field operations.

04/

Dimensional Stability: Controlled thermal setting during manufacturing minimizes shrinkage and distortion during multi-layer garment cutting and industrial sewing.



Technical Specifications



Technical Parameter

Test Standard

Specification Value

Material Composition

ISO 1833

UHMWPE Fiber / Aramid / Elastomeric Core

Areal Density

ISO 3801

450 g/m² plus or minus 5 percent

Fabric Thickness

ISO 5084

1.25 mm plus or minus 0.08 mm

Cut Resistance (TDM Test)

ISO 13997 / ASTM F1790

Level F (greater than or equal to 30 Newtons)

Puncture Resistance

EN 388 / ASTM F1342

greater than or equal to 145 N

Tensile Strength (Warp / Weft)

ISO 13934-1

greater than or equal to 2800 N / 50 mm

Elongation at Break

ISO 13934-1

less than 4.5 percent

Standard Roll Width

Measured

1500 mm (Customizable)

Roll Length

Measured

50 meters / roll (Standard)



Antimicrobial Slash Resistant Fabric



Material Composition

This fabric utilizes a hybrid multi-component construction optimized for mechanical durability:


Core Structural Load-Bearing: Ultra-High-Molecular-Weight Polyethylene (UHMWPE) continuous filament yarn (Molecular weight: 3.5 x 10^6 to 5.0 x 10^6 g/mol) providing ultra-high tensile modulus and impact absorption.


Friction and Thermal Shielding: Para-aramid staple/filament blending to inhibit frictional heat buildup during high-speed abrasion or animal clamping force.


Matrix Integrity Binder: Precision interlaced weave pattern (Plain / Twill / Multi-axial) stabilized via proprietary thermal calendering to lock yarns in place and prevent fiber migration under puncture stress.





Applications

Engineered for downstream manufacturers producing mission-critical safety gear:


K9 Training and Bite Suits: Protective sleeves, bite jackets, and leg guards for police and military working dog training facilities.


Animal Control and Wildlife Research: Handling gloves, bite-proof gaiters, and protective tunics for veterinary and zoological professionals.


Industrial Waste and Recycling: Cut and puncture-resistant protective aprons and sleeves for sorting municipal waste, glass shards, and medical scrap.


Marine and Outdoor Safety: Protective reinforcements for shark-deterrent water sports gear and rugged expedition wear.

Flame Resistant Fabric



Customization Options


We support OEM/ODM specification adjustments to meet exact project requirements:

Areal Weight Range

Customizable from 300 g/m² to 850 g/m² depending on required puncture thresholds.

Weave Architecture

Available in Plain weave, 2/2 Twill, or Uni-Directional (UD) multi-ply pre-preg configurations.

Functional Finishes

Hydrophobic water-repellent coating, flame-retardant (FR) treatment, or anti-microbial finishing.

Color Customization

Standard industrial white/black, high-visibility yellow, or custom Pantone color matching for bulk orders.



Quality Control

Manufactured under the ISO 9001:2015 Quality Management System, every production lot undergoes strict verification prior to dispatch:

Tensile and Tear Testing

Conducted in-house using calibrated electronic tensile testers according to ISO 13934 standards.

01

Puncture and Cut Verification

Random sampling tested via TDM cut machines and dynamic puncture rigs to verify lot compliance with ASTM F1790 ratings.

02

Dimensional Inspection

Automated optical width and thickness scanning along the entire 50-meter roll length to detect surface flaws or yarn tension variances.

03

Traceability

Each roll is labeled with a unique QR barcode linked to raw material batch certificates, production date, and operator ID.

04



Packaging and Shipping

Roll Packaging

Wound under controlled tension onto heavy-duty rigid paper cores (3-inch inner diameter), wrapped in moisture-barrier PE film, and sealed in heavy woven outer bags.

Palletization

Export-standard fumigation-free wooden pallets or plastic pallets secured with strapping and edge protectors for container shipping.

Logistics Support

FOB, CIF, or DDP shipping terms available via major global freight forwarders from primary manufacturing hubs.



FAQ



Q: What is the minimum order quantity (MOQ) for custom-colored or custom-weight Bite Resistant Fabric?

A: Standard stock items in black and natural white (450 g/m²) have an MOQ of 300 meters. For custom areal weights, weave structures, or specific Pantone colors, the MOQ is 1,000 meters per specification.

Q: Can this fabric be sewn using standard industrial sewing machines?

A: Yes, but due to the high cut-resistance and density of UHMWPE fibers, we recommend using heavy-duty industrial sewing machines equipped with high-speed titanium-coated needles (Size 110/18 or 120/20) and bonded Kevlar or continuous multifilament polyester sewing threads.

Q: How does the fabric perform under prolonged UV exposure and outdoor weathering?

A: UHMWPE possesses inherent chemical inertness and stable molecular structure. However, for continuous outdoor deployment exceeding 12 months, we recommend our UV-stabilized grade, which retains over 90 percent of its tensile strength after accelerated Xenon-arc weathering tests (ISO 4892-2).

Q: Are third-party laboratory test reports available for compliance verification?

A: Yes. Full batch test reports covering EN 388 Level F cut resistance and ASTM puncture parameters, issued by accredited laboratories (such as SGS or Intertek), are provided upon request with every commercial order.

Q: Can samples be provided for preliminary R&D testing and prototype fabrication?

A: Yes. We supply A4-size material swatches and 1-meter trial roll samples for engineering evaluation. Freight costs apply, and sample fees for customized roll lengths are refundable upon placement of a bulk production order.

Q: What is the standard lead time for bulk production orders?

A: Standard roll stock ships within 7 to 10 business days. Custom specifications, specialized weights, or orders exceeding 5,000 meters typically require 20 to 25 business days from technical drawing sign-off to factory dispatch.



modular-1
Request for Quotation

To receive a formal quotation, technical data sheet (TDS), or sample roll for your engineering evaluation, please provide your exact specifications below:
Target Application: (E.g., K9 Bite Suits, Industrial Aprons)
Required Areal Density / Thickness:
Estimated Annual Volume / Order Quantity:
Destination Port / Delivery Location:
