Product Overview



Engineered for law enforcement, correctional facilities, and high-risk security sectors, this UHMWPE stab resistant fabric utilizes ultra-high-molecular-weight polyethylene fiber matrices combined with proprietary high-density weaving structures. It delivers certified puncture and cut resistance against knife blades, spikes, and hypodermic needles while maintaining the flexibility and low profile required for daily operational wear.


  • Puncture Resistant Fabric
    The TW1301 is a representing the pinnacle of flexible penetration defense. Engineered to meet the elite FIE 800N Newton Force standard—the benchmark for professional international fencing
    read more

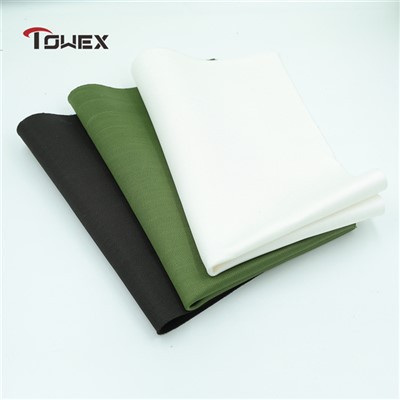

  • Stab Resistant Fabric High-Performance
    This fabric an impenetrable barrier optimized for Stab Resistance and Cut Resistance, fully compliant with EN388:2016 standards.It is the premier choice for discreet, high-level protection. Its deep
    read more

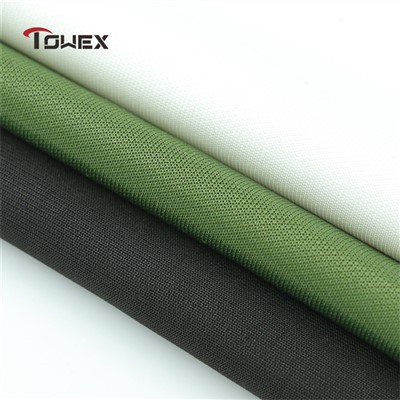

  • Anti-Stab UHMWPE Fabric
    The TW1304 Green is the heavy-duty sentinel of the TOWEX high-performance collection. This 100% Pure UHMWPE Functional Fabric is engineered for the most demanding military and industrial
    read more

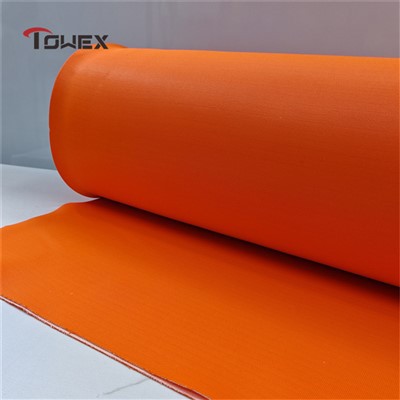

  • Anti Stab Fabric
    The TW1315 Orange developed by TOWEX, this 100% Pure UHMWPE High-Performance Fabric is engineered for high-risk industrial and emergency environments where Active Visibility is a mandatory safety
    read more
  • Cut Proof Fabric
    The TW3308 is the pinnacle of protective textile engineering from TOWEX. As our highest-rated Ultra-High Performance Fabric, it is designed for environments where standard safety materials fail. This
    read more


Key Features

01/

Certified Puncture Resistance: Engineered to meet NIJ 0115.00 and EN 388 performance thresholds against blade and spike threats.

02/

Low Areal Density & Slim Profile: Reduces vest weight compared to traditional steel or thick aramid plates, improving wearer mobility during extended shifts.

03/

Moisture & Chemical Inertness: UHMWPE core provides inherent resistance to water, sweat, saltwater, and common industrial chemicals, preventing degradation in harsh environments.

04/

Enhanced Tear & Tensile Strength: Multi-axial yarn orientation distributes impact energy across a broader surface area, arresting crack propagation upon point contact.



Technical Specifications



Parameter

Specification Value

Testing Standard

Material Base

UHMWPE Fiber / Proprietary Blends

ASTM D276

Areal Density

350 GSM – 650 GSM (+/- 5%)

ISO 3801

Thickness

0.35 mm – 0.85 mm

ISO 5084

Stab Resistance Level

NIJ 0115.00 Level 1 / Level 2 (Blade & Spike)

NIJ Standard-0115.00

Cut Resistance

Level 5 (Blade Cut Test)

EN 388 / ISO 13997

Tensile Strength (Warp/Weft)

>= 2800 N / 5cm

ISO 13934-1

Standard Roll Width

1.2 m – 1.5 m (Customizable)

Internal QC

Roll Length

50 m / 100 m per roll

Internal QC



Material Composition

Core Reinforcement

100% High-Modulus Polyethylene (HMPE) continuous filament yarns.

Matrix Structure

Precision multi-layer woven architecture bonded with specialized elastomeric resin to restrict yarn slippage under sharp-force impact.

Surface Treatment

Low-friction finish optimized for smooth integration into outer carrier shells and concealable inner linings.



Stab Resistant Fabric High-Performance



Applications

Law Enforcement & Police Vests: Concealable and tactical vest inserts for everyday patrol and high-threat operations.


Correctional Facility Uniforms: Stab-resistant undershirts and tunics designed to mitigate improvised edged-weapon threats.


Security & Cash-in-Transit Gear: High-mobility protective shirts and jackets for high-risk asset transport personnel.


Industrial Anti-Puncture PPE: Heavy-duty protective aprons, sleeves, and panels for glass handling, metal recycling, and waste management.



Customization Options



Areal Weight Tuning

Adjustable from 350 GSM to 650 GSM based on specific target protection levels and weight limits.

01

Width & Dimensioning

Custom roll widths or laser-cut panel configurations tailored to specific garment pattern layouts, minimizing cutting waste.

02

Color Options

Standard tactical black, white, and customized coloration available upon request.

03

Composite Layering

Options for flame-retardant (FR) backing integration or anti-microbial surface treatments.

04

Rapid Prototyping

Custom sample development lead time strictly maintained at 7 to 10 business days for urgent design trials.

05





Quality Control

Yarn Inspection: Incoming raw filament tensile modulus and titer verification prior to warping.


Weaving Tension Control: Computer-monitored loom tension systems to eliminate yarn crimp variations and ensure uniform areal density.


In-House Drop-Tower Testing: Every production batch undergoes sample drop-tower puncture testing in accordance with NIJ protocols.


Traceability: Each roll is labeled with a unique batch number linked to raw material mill certificates and internal QC test reports.

Stab Resistant Fabric High-Performance



Packaging & Shipping


Inner Packaging

Wrapped in heavy-duty moisture-barrier polyethylene film and sealed to prevent humidity exposure during transit.

Outer Protection

Wound on rigid cardboard cores, suspended in reinforced double-wall corrugated export cartons or heavy-duty woven sacks.

Palletization

Fumigation-free wooden pallets secured with edge protectors and stretch film, optimized for international sea and air freight.



FAQ



Q: What stab protection standards do your fabrics comply with, and can you provide test reports?

A: Our fabrics are engineered to meet NIJ 0115.00 (Level 1 and Level 2) and EN 388 standards. We provide batch-specific test reports issued by accredited third-party laboratories (such as H.P. White or SGS) with every commercial shipment.

Q: What is the minimum order quantity (MOQ) for custom-weight or custom-width stab resistant fabrics?

A: The standard MOQ for stock specifications is 500 meters. For custom areal weights, widths, or specific resin formulations, the MOQ starts at 1,000 meters to account for loom setup and calibration. Trial sample yardage is available upon request.

Q: How does this fabric perform in humid or wet environments?

A: UHMWPE possesses inherent hydrophobic properties with near-zero moisture absorption (0%). Exposure to water, sweat, or rain does not degrade its puncture resistance or tensile strength, making it ideal for tropical and wet operating conditions.

Q: What is the typical lead time for sample requests and bulk production orders?

A: Standard stock samples ship within 3 to 5 business days. Custom-engineered sample development takes 7 to 10 business days, while bulk production orders typically range from 15 to 25 business days depending on volume and specification complexity.



modular-1
RFQ

To receive a precise technical quotation and sample evaluation kit, please provide the following parameters in your inquiry:
Target Application: (E.g., Concealable Vest, Correction Officers' Uniform, Industrial Cut Guard)
Required Protection Standard / Level: (E.g., NIJ Level 1, EN 388 Cut Level 5)
Estimated Annual Volume or Initial Trial Quantity (Meters):
Target Areal Density (GSM) or Thickness Restrictions:
Destination Port / Delivery Address:
