Jiaxing Towex New Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of nij iii high-modulus ud solution in China, featured by quality products and low price. Please rest assured to wholesale bulk nij iii high-modulus ud solution in stock here and get quotation from our factory. Customized orders are welcome.

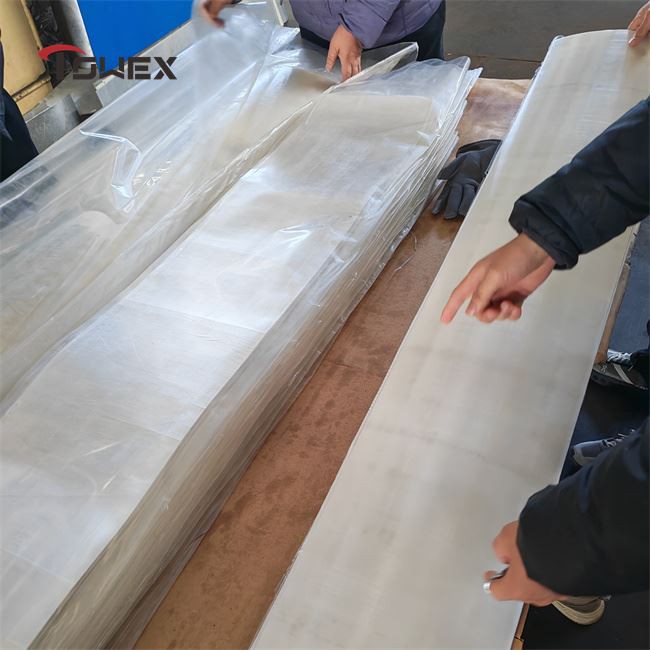

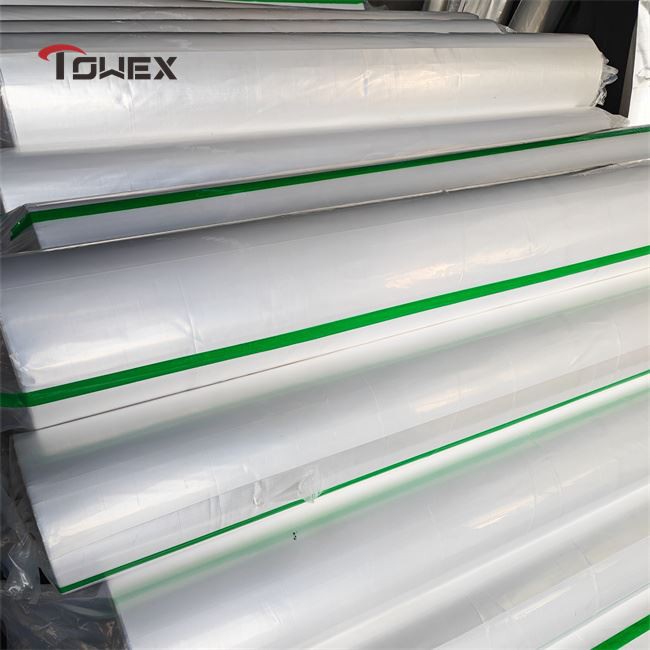

As a Source Factory specializing in high-performance fibers, TOWEX provides the advanced UHMWPE UD (Unidirectional) materials required to manufacture NIJ Level III hard armor plates. Our "Pure PE" solution allows manufacturers to produce the world's lightest rifle-rated plates that are not only buoyant (float in water) but also offer exceptional multi-hit durability.
NIJ III UD Material Selection Matrix
For Level III protection, the matrix resin must be rigid enough to prevent delamination during high-velocity impact.
|
TOWEX Model |
Composition |
Areal Density (g/m2) |
Configuration |
Primary Threat |
Key Advantage |
|
TW-R160 (Standard) |
100% UHMWPE |
160 |
4UD / 6UD |
7.62mm NATO M80 |
Balanced cost & performance for mass production. |
|
TW-R220 (Professional) |
100% UHMWPE |
220 |
8UD / 10UD |
7.62mm & 5.56mm M193 |
High-Efficiency Molding; fewer layers needed for rapid assembly. |
Technical Specifications & Manufacturing Guide
The most critical question is: "How many layers/weight are needed for a 10x12 NIJ III plate?"
● Option: 100% Pure PE Rigid Plate
● Material: TOWEX TW-R220 (Rigid Matrix UD)
● Estimated Layers: 75 - 85 Layers (depending on pressing pressure).
● Total Thickness: ~18mm - 22mm.
● Finished Plate Weight: ~1.2 kg - 1.4 kg (for a standard 10x12 inch SAPI cut).
● Molding Process: Thermoforming at 125°C - 130°C with a pressure of 20 - 25 MPa.
Understanding the NIJ Level III Standard
The NIJ 0101.06 Level III is a rigorous ballistic standard established by the National Institute of Justice. Unlike Level IIIA (which covers handgun threats), Level III is specifically designed to defeat rifle threats.
● Test Round: 7.62 x 51mm NATO FMJ (Full Metal Jacket) steel jacket bullets (U.S. Military designation M80).
● Test Velocity: 847± 9.1m/s, (2780±30 ft/s).
● Performance Requirement: The armor must stop the specified rounds and maintain strict Backface Deformation (BFD) limits to ensure the wearer's safety from blunt force trauma.
|
Feature |
Specification |
|
Material Base |
High-Modulus UHMWPE |
|
Protection Level |
NIJ 0101.06 Level III (Rifle Rated) |
|
Processing Method |
High-Pressure Heat Compression |
|
Environmental Stability |
Waterproof, UV-Resistant, Chemical-Inert |
Primary Applications
Our NIJ III UD Solution is the industry standard for:

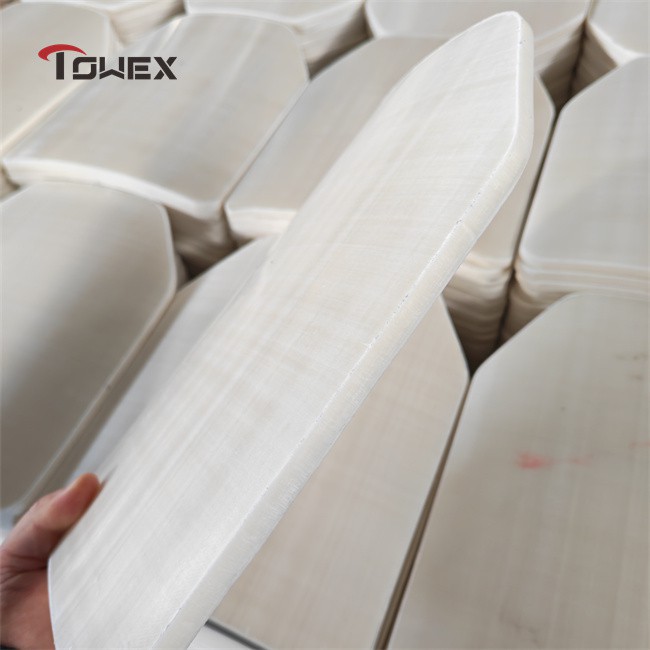

Hard Armor Plates (HAP)
The primary material for Standalone (SA) or In-Conjunction-With (ICW) rifle-rated inserts.
Tactical Shields
Lightweight, man-portable ballistic shields capable of stopping rifle fire during high-risk entries.
Vehicle Armoring
Protective panels for military vehicles, VIP SUVs, and cash-in-transit trucks to guard against roadside ambushes.
Critical Infrastructure
Ballistic lining for guard houses, safe rooms, and modular defensive barriers.
Why choose TOWEX NIJ III UD
Extreme Back-Face Signature (BFS) Control
Our high-modulus fibers and specialized resin matrix minimize the "pouch" effect upon impact, ensuring the trauma to the wearer is significantly below the 44mm NIJ limit.
Multi-Hit Excellence
Unlike ceramic plates which shatter, TOWEX Pure PE UD can sustain 6+ shots of 7.62mm NATO rounds in a small area without structural failure, making it ideal for high-intensity combat.
Superior V50 Performance
TOWEX source fibers (>38 cN/dtex) provide a V50 limit (7.62mm M80) exceeding 850 m/s, providing a high safety margin for end-users.
Edge-to-Edge Protection
Our precision lamination technology ensures that the ballistic integrity at the edges of the plate is just as strong as the center, a common failure point for low-quality UD.
Technical Matrix: Protection Levels, Materials, and Firearms
This table is optimized for professional procurement, correlating TOWEX materials with international threat levels and common firearm platforms.
|
Protection Level (NIJ 0101.06) |
Plate Category |
Material Solution |
Primary Threat / Common Firearms |
Key Performance Advantage |
|
Level IIIA |
Soft / Hard |
UHMWPE 4UD / 6UD |
.44 Magnum; 9mm Submachine Gun (e.g., MP5, Glock 17) |
Ultralight & concealable; ideal for daily law enforcement patrol. |
|
Level III |
Hard (Pure PE) |
UHMWPE 8UD / 10UD (Rigid Grade) |
7.62mm NATO (M80); 5.56mm (M193) (e.g., M14, FN FAL, AR-15) |
100% PE Construction; buoyant (floats in water) with elite multi-hit capability. |
|
Level III+ (RF2) |
Hard (Composite) |
Ceramic + PE 10UD Backing |
7.62x39mm (AK-47 MSC); 5.56mm (M855/SS109) |
Designed for AK-47 Mild Steel Core rounds; best-selling mid-tier solution. |
|
Level IV |
Hard (Composite) |
SiC/B4C Ceramic + PE 10UD |
.30-06 Springfield (M2 AP Armor Piercing) (e.g., M1 Garand, SVD Sniper) |
Maximum Protection; stops heavy armor-piercing rounds in high-intensity combat. |
